Description

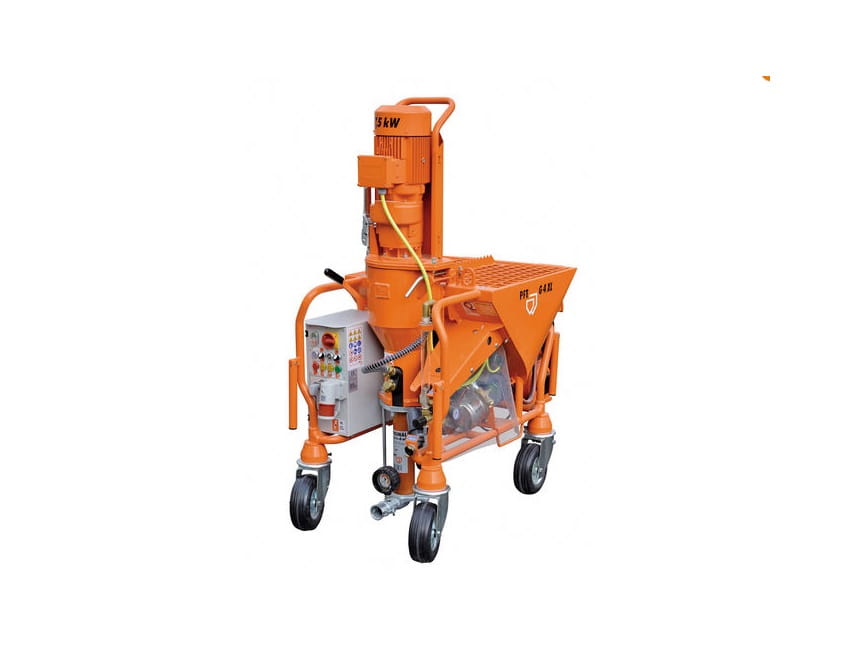

Plastering unit PFT G4 XL
The PFT G 4 is a continuously running plastering unit for the processing of factory-made machine-mixed dry mortar. The unit can be filled both with bagged material and directly from a silo or container using a through lid or blowing lid and the PFT SILOMAT.
For pumpable manufactured dry mortars such as:
Gypsum plasters
Gypsum-lime plasters
Cement plasters
Lime plasters
Lime-cement plasters
Mineral slurries (fango)
Insulating plasters
Mortars for filling joints
Reinforcement and adhesive mortars

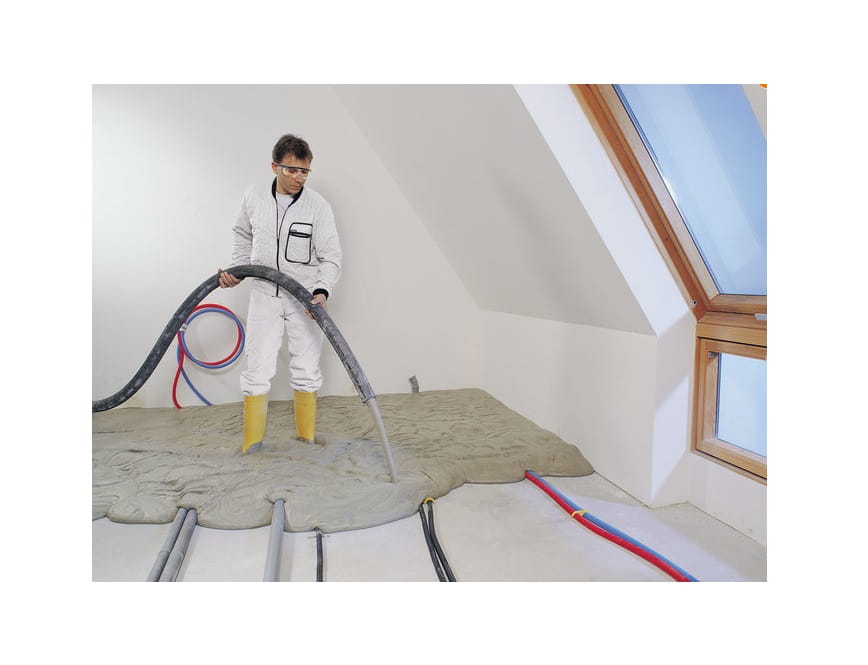

Liquid screeds
Mortars
Self-levelling putties
Damping compounds
Accomplishment:
Pump capacity *: approx.22l/min
Feeding pressure: 30 bar
Feeding distance *: up to 50m*
Electrification:
400 V, 3 phases, 50 Hz
Drive:
Pump motor: 5.5kW, 385 rpm
Dosing wheel motor: 0.75 kW, 28 rpm
Water continuing 3/4
Pressure at water connection: 2.5 bar
Rotors / Stators: TWISTER D 6-3
Handy K 2 N air compressor
L/W/h measurements: 1,200/720/1,530 mm
Filling height: 910 mm
Tank capacity: 145 l
Total weight: 271 kg
* These are indicative values, depending on the quality, composition and consistency of the mortar, design and condition of the pump, cross-section of the delivery hose and infeed height. Ultimately, the relevant guidelines or recommendations of the manufacturer of the material to be processed are authoritative.
